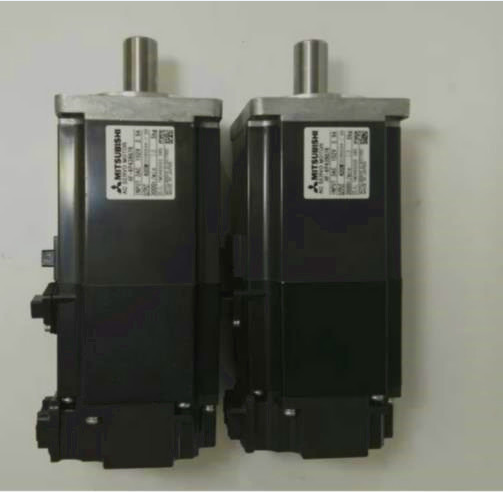

Specifications for HF-KP43BG7K
| Description | HF-KP43BG7K is a Motors-AC Servo |
| Servomotor Type | HF-KP Series; Ultra-low inertia,small capacity |
| Rated Output 7 | 400W |
| Rated Speed | 3000 rpm; 102V |
| Gear Head | YES |
| Shaft end | Standard (Straight shaft) |
AVAILABLE
· REBUILT SURPLUS
· NEW SURPLUS
· REPAIR YOURS
· 24-48 HOUR RUSH REPAIR
· 2 - 15 DAY REPAIR
· New one with one year warranty and used one with six months
warranty.
Notes:
1.When the power supply voltage drops, we cannot guarantee the
output and rated speed.
2.80% ED at low noise.
80% ED: Indicates the condition in which operation time at read
torque accounts for 80% and the other no load time accounts for 20%
in a single operation cycle.
3.When the servo motor is equipped with reduction gear or
electromagnetic brake, refer to the corresponding outline dimension
drawing. For the EN Standard and UL/cUL Standard compliant models,
please contact Mitsubishi.
4.If the load inertia moment ratio exceeds the indicated value,
please contact Mitsubishi.
5.When the equipment is to be used in places where it is subjected
to oil and/or water, such as on machine field sites, optional
features apply to the equipment.
6.Except for the shaft-through portion and connector end.
Cables| Motor Type | Power/Encoder Cable Length | Power/Encoder Cable Model Number |
| HC-AQ0135D or HC-AQ0135BD | 2 Meter | MR-JRCBL2M-H |
| HC-AQ0135D or HC-AQ0135BD | 5 Meter | MR-JRCBL5M-H |
| HC-AQ0135D or HC-AQ0135BD | 10 Meter | MR-JRCBL10M-H |
| HC-AQ0235D or HC-AQ0235BD | 2 Meter | MR-JRCBL2M-H |
| HC-AQ0235D or HC-AQ0235BD | 5 Meter | MR-JRCBL5M-H |
| HC-AQ0235D or HC-AQ0235BD | 10 Meter | MR-JRCBL10M-H |
| HC-AQ0335D or HC-AQ0335BD | 2 Meter | MR-JRCBL2M-H |
| HC-AQ0335D or HC-AQ0335BD | 5 Meter | MR-JRCBL5M-H |
| HC-AQ0335D or HC-AQ0335BD | 10 Meter | MR-JRCBL10M-H |
Related Motors
HC-KF13
HC-KF13B
HC-KF13K
HC-KF13D
HC-KF13BK
HC-KF13G1
HC-KF13G2
HC-MF13
HC-MF13B
HC-MF13BD-S15
HC-MF13BG1-UE
HC-MF13D
HC-MF13D-S2
HC-MF23
HC-MF23BK
HC-MF23BK-UE
HC-MF23G1-UE
HC-MF23-S15
HC-MF23-UE
INSTALLTION of Protection from oil and water
(1) Next, the servo motor is not waterproof (IP44). Do not subject
the servo motor to oil and water.
Especially for the HC-MF / HC-KF / HC-AQ / HC-KFS / HC-MFS and
HA-FF series, do not subject the
shaft-through portion to oil.
(2) When the gear box is mounted horizontally, the oil level in the
gear box should always be lower than
the oil seal lip on the servo motor shaft. If it is higher than the
oil seal lip, oil will enter the servo motor, leading to a fault.
The HC-MF / HC-KF / HC-AQ / HC-MFS and HC-KFS series servo motor is
not equipped with an oil seal and cannot be used with the gear box
as described above. Oil should be shut off on the gear box side.
(3) When installing the servo motor horizontally, face the power
cable and encoder cable downward. When installing the servo motor
vertically or obliquely, provide a trap for the cable.
(4) Do not use the servo motor with its cable soaked in oil or
water. (Figure on the right)
(5) When the servo motor is to be installed with the shaft end at
top, provide measures so that it is not
exposed to oil and water entering from the machine side, gear box,
etc.
(6) If the servo motor is exposed to oil such as coolant, the
sealant, packing, cable and others may be
affected depending on the oil type.
(7) In the environment where the servo motor is exposed to oil
mist, oil, water, grease and/or like, the
servo motor of the standard specifications may not be usable.
Contact us.
(8) In the case of the servo motor with oil seal, the oil seal may
sound during operation. It poses no
problems in function.
