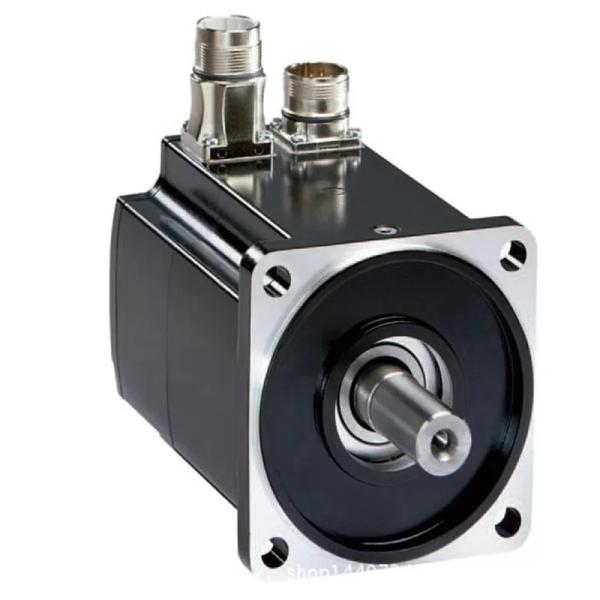

R88M-G75030T-BS2 OMRON CNC Control Machine Rotary Servo Motor

Ask Lasest Price
Brand Name :	OMRON
Model Number :	R88M-G75030T-BS2
Certification :	CE
Price :	negotiable
Payment Terms :	T/T, , L/C
Supply Ability :	88
Delivery Time :	5-8DAYS

Add to Cart

Product Details
Company Profile

R88M-G75030T-BS2 OMRON CNC Control Machine Rotary Servo Motor

Brand:

OMRON

Model:

R88M-G75030T-BS2

Origin:

China

High Light:

ewing machine servo motor

electric servo motor

R88M-G75030T-BS2 OMRON AC Servomotor , With ABS/INC Encoder 750W , 200 VAC , With Key / With Brake , 3000rpm

200-VAC Input Power

Model (R88M-)			G05030H	G10030H	G20030H	G40030H	G75030H
Item		Unit	G05030T	G10030T	G20030T	G40030T	G75030T
*Rated output t 1**		W	50	100	200	400	750
*Rated torque 1**		N·m	0.16	0.32	0.64	1.3	2.4
Rated rotation speed		r/min	3000
Max. momentary rotation speed		r/min	5000				4500
*Max. momentary torque 1**		N·m	0.45	0.90	1.78	3.67	7.05
*Rated current 1**		A (rms)	1.1	1.1	1.6	2.6	4
*Max. momentary current 1**		A (rms)	3.4	3.4	4.9	7.9	12.1
Rotor inertia		kg·m² (GD2/4)	2.5 × 10^-6	5.1 × 10^-6	1.4 × 10^-5	2.6 × 10^-5	8.7 × 10^-5
Applicable load inertia		---	30 times the rotor inertia max. *2				20 times the rotor inertia max. *2
*Torque constant 1**		N·m/A	0.14	0.19	0.41	0.51	0.64
*Power rate 1**		kW/s	10.4	20.1	30.3	62.5	66
Mechanical time constant		ms	1.56	1.1	0.71	0.52	0.45
Electrical time constant		ms	0.7	0.79	2.6	3	4.6
*Allowable radial load 3**		N	68	68	245	245	392
*Allowable thrust load 3**		N	58	58	98	98	147
Weight	Without brake	kg	Approx. 0.3	Approx. 0.5	Approx. 0.8	Approx. 1.2	Approx. 2.3
Weight	With brake	kg	Approx. 0.5	Approx. 0.7	Approx. 1.3	Approx. 1.7	Approx. 3.1
Radiation shield dimensions (material)			100 × 80 × t10 (AI)		130 × 120 × t12 (AI)		170 × 160 × t12 (AI)
Applicable Servo Drives (R88D-)			GT01H	GT01H	GT02H	GT04H	GT08H
Brake specifi- cations	Brake inertia	kg·m² (GD2/4)	2 × 10^-7	2 × 10^-7	1.8 × 10^-6	1.8 × 10^-6	7.5 × 10^-6
	*Excitation voltage 4**	V	24 VDC ± 5%
	Power consumption (at 20 °C)	W	7	7	9	9	10
	Current consumption (at 20 °C)	A	0.3	0.3	0.36	0.36	0.42
	Static friction torque	N·m	0.29 min.	0.29 min.	1.27 min.	1.27 min.	2.45 min.
	*Attraction time 5**	ms	35 max.	35 max.	50 max.	50 max.	70 max.
	*Release time 5**	ms	20 max.	20 max.	15 max.	15 max.	20 max.
	Backlash		± 1 °
	Allowable work per braking	J	39.2	39.2	137	137	196
	Allowable total work	J	4.9 × 10³	4.9 × 10³	44.1 × 10³	44.1 × 10³	147 × 10³
	Allowable angular acceleration	rad/s²	30,000 max. (Speed of 2,800 r/min or more must not be changed in less than 10 ms)
	Brake life	---	10,000,000 operations min.
	Rating	---	Continuous
	Insulation grade	---	Type F

[ABS/INC] 3,000-r/min Cylindrical Servomotors

Specifications			Model
Specifications			Straight shaft	Straight shaft with key and tap
Without brake	100 V	50 W	R88M-G05030T	R88M-G05030T-S2
		100 W	R88M-G10030S	R88M-G10030S-S2
		200 W	R88M-G20030S	R88M-G20030S-S2
	200 V	400 W	R88M-G40030S	R88M-G40030S-S2
		50 W	R88M-G05030T	R88M-G05030T-S2
		100 W	R88M-G10030T	R88M-G10030T-S2
		200 W	R88M-G20030T	R88M-G20030T-S2
		400 W	R88M-G40030T	R88M-G40030T-S2
		750 W	R88M-G75030T	R88M-G75030T-S2
		1 kW	R88M-G1K030T	R88M-G1K030T-S2
		1.5 kW	R88M-G1K530T	R88M-G1K530T-S2
		2 kW	R88M-G2K030T	R88M-G2K030T-S2
		3 kW	R88M-G3K030T	R88M-G3K030T-S2
		4 kW	R88M-G4K030T	R88M-G4K030T-S2
		5 kW	R88M-G5K030T	R88M-G5K030T-S2
With brake	100 V	50 W	R88M-G05030T-B	R88M-G05030T-BS2
		100 W	R88M-G10030S-B	R88M-G10030S-BS2
		200 W	R88M-G20030S-B	R88M-G20030S-BS2
		400 W	R88M-G40030S-B	R88M-G40030S-BS2
	200 V	50 W	R88M-G05030T-B	R88M-G05030T-BS2
		100 W	R88M-G10030T-B	R88M-G10030T-BS2
		200 W	R88M-G20030T-B	R88M-G20030T-BS2
		400 W	R88M-G40030T-B	R88M-G40030T-BS2
		750 W	R88M-G75030T-B	R88M-G75030T-BS2
		1 kW	R88M-G1K030T-B	R88M-G1K030T-BS2
		1.5 kW	R88M-G1K530T-B	R88M-G1K530T-BS2
		2 kW	R88M-G2K030T-B	R88M-G2K030T-BS2
		3 kW	R88M-G3K030T-B	R88M-G3K030T-BS2
		4 kW	R88M-G4K030T-B	R88M-G4K030T-BS2
		5 kW	R88M-G5K030T-B	R88M-G5K030T-BS2

Our store provides a large number of brands for a long time: Emerson, Fisher Rosemount, Honeywell, abb, AB, Mitsubishi, Yaskawa, Yokogawa, GE and so on. Trigger board / drive board / control board I / O board / communication board / power board and other spare parts are operated in good faith. Welcome to buy.
★ the title, quantity and price of baby are only for customers' reference. If you need to buy, please confirm the price and delivery date with the seller before shooting! Thank you for your strong support!
★ our store is operated online and offline at the same time, with fast delivery and excellent price. If there are changes in price and quantity, it is normal. If necessary, please contact the shopkeeper directly to determine the model, price, quantity, delivery time, logistics and payment method! Thank you for your support! We will provide customers with the best service at the most favorable price and the best quality! Sincerely look forward to your cooperation!
★Service tenet: quality first, preferential price, perfect service and integrity first
★ brand new and original, with a one-year warranty
