Mitsubishi Electric Motors HF-KN23B ac Servo Motor Industrial 200W 103V 1.3A 3000RPM

Models of HF-KN23 Series Servo motors

Mitsubishi HF-KN23
Output :0.2 KW
Maximum torque :1.9 Nm
Rated Speed :3000 1/min
Max speed :4500 1/min
Rotor inertia Standard:0.000024-0.000031 kg.m²
Rated Current :1.4 A
Max. Current :4.2 A
Weight Standard:1.0-1.4 Kg

Mitsubishi HF-KN23K
Output :0.2 KW
Maximum torque :1.9 Nm
Rated Speed :3000 1/min
Max speed :4500 1/min
Rotor inertia Standard:0.000024-0.000031 kg.m²
Rated Current :1.4 A
Max. Current :4.2 A

Mitsubishi HF-KN23B
Output :0.2 KW
Maximum torque :1.9 Nm
Rated Speed :3000 1/min
Max speed :4500 1/min
Rotor inertia Standard:0.000024-0.000031 kg.m²
Rated Current :1.4 A
Max. Current :4.2 A

Mitsubishi HF-KN23BK
Output :0.2 KW
Maximum torque :1.9 Nm
Rated Speed :3000 1/min
Max speed :4500 1/min
Rotor inertia Standard:0.000024-0.000031 kg.m²
Rated Current :1.4 A
Max. Current :4.2 A

Mitsubishi HF-KN23D
Output :0.2 KW
Maximum torque :1.9 Nm
Rated Speed :3000 1/min
Max speed :4500 1/min
Rotor inertia Standard:0.000024-0.000031 kg.m²
Rated Current :1.4 A
Max. Current :4.2 A

Mitsubishi HF-KN23BD
Output :0.2 KW
Maximum torque :1.9 Nm
Rated Speed :3000 1/min
Max speed :4500 1/min
Rotor inertia Standard:0.000024-0.000031 kg.m²
Rated Current :1.4 A
Max. Current :4.2 A

Specifications

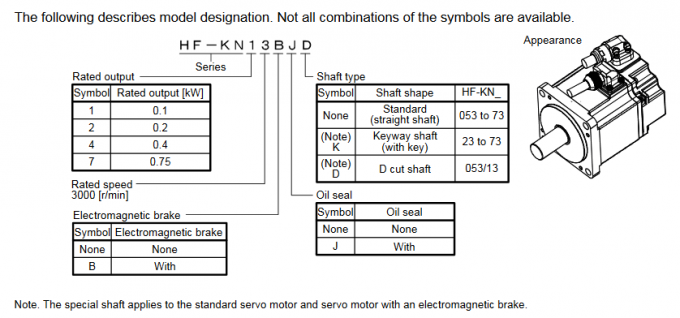

Models of HF-KN Series Servo motors

HF-KN13

HF-KN13B

HF-KN13J

HF-KN13J-S100

HF-KN13BJ-S100

HF-KN23

HF-KN23B

HF-KN23J

HF-KN23J-S100

HF-KN23BJ-S100

HF-KN43

HF-KN43B

HF-KN43J

HF-KN43J-S100

HF-KN43BJ-S100

HF-KN73

HF-KN73B

HF-KN73J

HF-KN73J-S100

HF-KN73BJ-S100
