Brand: Mitsubishi

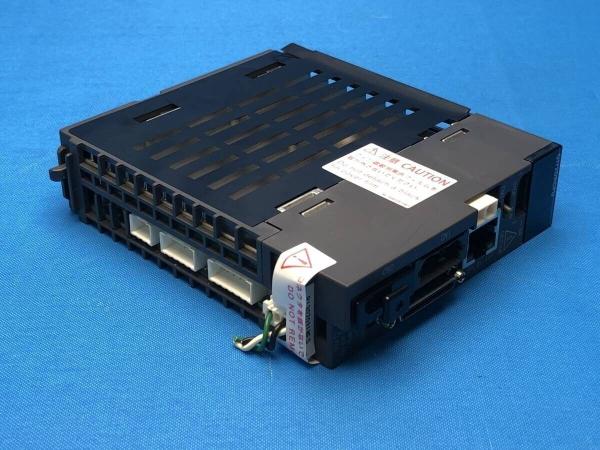

Product Name: Motion Controller
Model: Q172DSCPU
Number of control axes: 16 more axes.
Servo amplifier connection method: SSCNETM/H (1 system).
Motion controller refers to a CPU module used in combination with a
programmable controller CPU for motion control.
Use the Motion SFC program to independently control the
programmable controller CPU.
Motion control that can share the load with the programmable
controller CPU.
Implement motion control such as position tracking and serial
operation.
You can directly manage input and output modules, analog quantity
modules, high-speed counter modules, etc. to achieve high-speed
input and output.
Serial ABS synchronous encoder input can be used with 2 units per
module.
Position detection method: Paired value (ABS) method.
Transmission method: serial communication.
Allow tracking of target input points: 2 points.
Automatically transfer record files to an FTP server
Simply set it up through the recording configuration tool,
The data record files stored on the SD memory card can be sent to
the FTP server Mitsubishi Q172DSCPU
Due to the ability of the record server to process multiple files,
it can reduce management and maintenance tasks Q172DSCPU
Able to respond quickly when a malfunction occurs.
Simply extract data related to the problem, without spending time
filtering a large amount of diagnostic data,
Therefore, it is possible to quickly determine the cause of the
malfunction and develop a solution. Input number of points: 32.
Input voltage and current: DC24V6mA Mitsubishi Q172DSCPU.
Management time: 1/5/10/20/70ms.
32 points/1 common terminal.
Common cathode.
37 pin D-sub connector.
Continuously climb the Q series.
Strengthen safety functions.
A file password of 32 characters can be set.
In addition to English letters and numbers, special characters can
also be used,
Further enhanced password security.
In addition, only pre registered devices are allowed to access the
CPU
Thus, unauthorized users' access to Mitsubishi Q172DSCPU was
intercepted.
Therefore, it can prevent the outflow of important program assets
and protect intellectual property rights.
Easily connect programming tools through Ethernet.
When programming tools (GX Works2, GX Developer) are directly
connected to the CPU (1 on 1),
No IP address setting is required. And there is no need to choose
cables, both straight and cross wires can be used.
Therefore, this connection method, like using USB, allows for easy
communication with the CPU,
Even operators unfamiliar with network settings can easily
establish connections to Mitsubishi motion controllers.
Various modules with excellent performance,
Meet various control requirements from analog quantity to
positioning.
The Q series module products include a wide variety of I/O, analog,
and positioning function modules.
It can meet the input and output requirements of switches, sensors,
etc., as well as the control of temperature, weight, flow rate, and
motors and drivers,
As well as the control requirements of various industries and
fields, such as the positioning of control requirements, Mitsubishi
motion controllers.
It can also be combined with CPU modules to achieve appropriate
control. Measurement items: leakage current (l0), resistive leakage
current (lor).
Number of measuring circuits: 2 circuits.
The edge monitoring module for measuring leakage current is the
Mitsubishi motion controller.
Leakage current can be measured to ensure safety. By monitoring
leakage current (l0), electric shock hazards can be detected.
Can continuously monitor the edge state of the equipment and
measure resistive leakage current (LOR),
In order to continuously monitor the aging status of the equipment.
Each measurement item can be reported and monitored in two stages,
including leakage current (lo) and resistive leakage current (lor),
No ladder program Q172DSCPU required. The alarm is divided into two
stages: attention alarm and danger alarm.
One module can measure two circuits, and one module can measure two
circuits of the same phase line power supply in the same system.
Mitsubishi
Q172DSCPU
In addition, GXWorks2 (version 1.90U or higher) can be used to
easily set parameters.
[Measurement item] Leakage current (l0), resistive leakage current
(lor)
