Detailed Data:
| Brand : | Mitsubishi | Model : | HG-KN23J-S100 |
| Input: | 3AC | Voltage: | 119v |
| Current: | 1.3A | Power: | 200w |
| Weight: | 0.98kg | r/min: | 3000 |
| Frequency : | 0-250Hz | Temperature : | 40 ℃ |

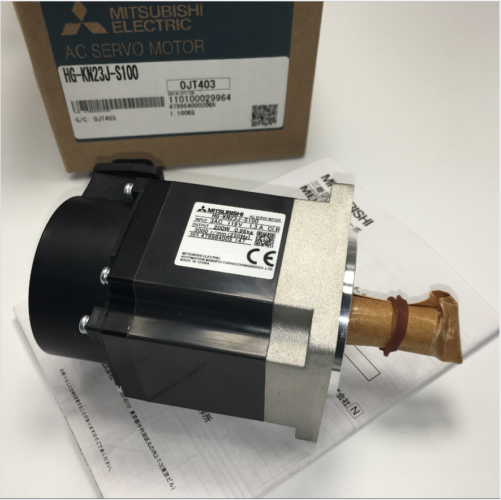

HG-KN23J-S100 Mitsubishi 200w power servo brushless motor
Performance parameter description of Mitsubishi servo motor
HG-KN23J-S100
[Continuous characteristics (Note 1)] Rated output 0.2kW, rated
torque 0.64 N · m
[Maximum torque] 1.9 N · m
[Rated speed (Note 1)] 3000 r/min
[Maximum speed] 5000 r/min
[Instantaneous allowable speed] 5750 r/min
[Power ratio at continuous rated torque] 18 kW/s
[Rated current] 1.3A
[Maximum current] 3.9A
[Inertia J] 0.225 [* 10 to the 4th power kg · m square]
[Recommended load inertia ratio (Note 2)] below 15 times
[Speed and position detector] Incremental 17 bit encoder
(resolution per revolution of servo motor: 131072pulses/rev)
[Oil seal] Yes
[Heat resistance rating] 130 (B)
[Structure] Fully closed loop self cooling (Protection level: IP65
(Note 3))
[Environmental conditions (Note 4)]
Environmental temperature: 0 ° C~40 ° C during operation (without
freezing), -15 ° C~70 ° C during storage (without freezing)
Environmental humidity: below 80% RH during operation (without
condensation), below 90% RH during storage (without condensation)
Surrounding environment: indoor (without direct sunlight), without
corrosive gases, flammable gases, oil mist, dust, etc
Altitude: Below 1000m above sea level
Vibration resistance (Note 5): X, Y: 49m/s ²
[Vibration level (Note 6)] V10
[Allowable load of shaft (Note 7)] L 30mm, radial 245N, axial 98N
[Weight] 0.98kg
Application example:
1. Food processing machinery.
2. Printing machine.
3. Injection molding machine (11KW, 15KW).
4. Large stamping machine (11KW, 15KW).
The protection level of the HF-SP/HF-JP series servo motor is IP67
(excluding the shaft penetration part).
Low inertia medium power servo motor (. 5kw~9kw), high speed:
6000r/min (rated speed 3000r/min)
Suitable for high-frequency positioning and
acceleration/deceleration operations, especially for food
processing machines and printing machines HG-KN23BJ-S100 (selection
information).
Low inertia high-power non cooling fan servo motor (11kW and 15kW),
high speed: 3000r/min (rated speed: 1500r/min) HG-
KN23BJ-S100 (selection information)
Due to the adoption of a non cooling fan design, the motor
structure is more compact, and wiring is reduced by using power
connectors
Compared with HF-LP series servo motors of the same power, the
volume has been reduced by about 46% and the weight has been
reduced by about 34%,
Suitable for high-frequency positioning and
acceleration/deceleration operations, especially for injection
molding machines and large press machines
